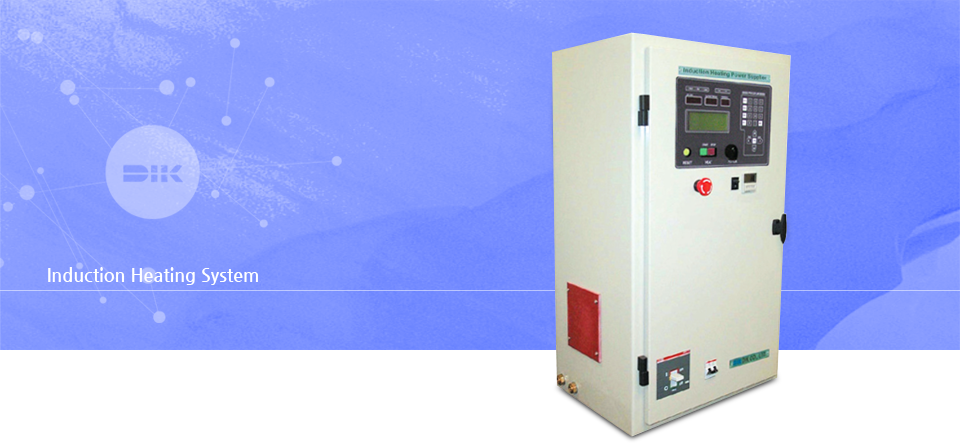

WI-2540Induction Heating System

25kw|Induction heater / FET

Spec

Usage

induction heating system
Output

25 kW
Frequency range

135 ~ 400 kHz
Oscillation voltage

500Vrms
Minimum power factor

0.5

Outline dimensions

W. 51 x H. 91x D. 38 (cm)
Weight

80 kg
Switch method

FET

Technologies

Features

It can set frequencies in accordance with the safe operation support_eng usage since it is equipped with various safety devices that make it easy to set frequencies. Even when output is shorted, the internal circuit stays intact or "highernone".

Advantages

Stability of power output

Thrust remains constant even when input voltage changes (Ato feedback circuit) - AVR is not required. Frequency, current and voltage are automatically controlled so that the set output will not be changed.

Convenient ouput setting (Programmable Control System)

It allows for setting multi-step output and multiple task program. Moreover, it also allows for setting shortcut programs (up to 8).

Economic feasibility

Inexpensive induction heating system facility. Minimal installation site is required due to compact size, light weight and stability (AVR is not required because it makes use of PWM control method). Workplace environment is cleaned and purified. Equipment power loss is minimized, and output waveform is stable and efficient (high efficiency). Pattern can be easily changed and modification time is short for various product_eng works.
