RHS 120Induction Heating System

120 kW|Accessory

Spec

Usage

Induction heater remote controller
cooling device

water cooled
communication

MODBUS-RTU RS485
Condenser placement and mounting number

serial. parallel X 12

dimensions

W. 25 x H. 27 x D. 53 (cm)
weight

25 (Excluding condenser) kg

Technologies

characteristic

The RHS is a device to minimize the loss of the resonance circuit when the WorkCoil is transported or far from the Power_Suppy. It consists of a high-frequency output cable and a condenser rail.

Advantages

Power stability of output

By using an air-cooled coaxial output cable and minimizing the distance between the workcoil and the resonant condenser, reactive power is reduced and high frequency output is stabilized.

Convenience of use

Up to 12 resonant condensers can be mounted in series or parallel to enable the use of various types of workcoils.

Economics

Heating efficiency increases by minimizing the distance between the workcoil through which large currents flow and the resonant condenser.

Basic structure

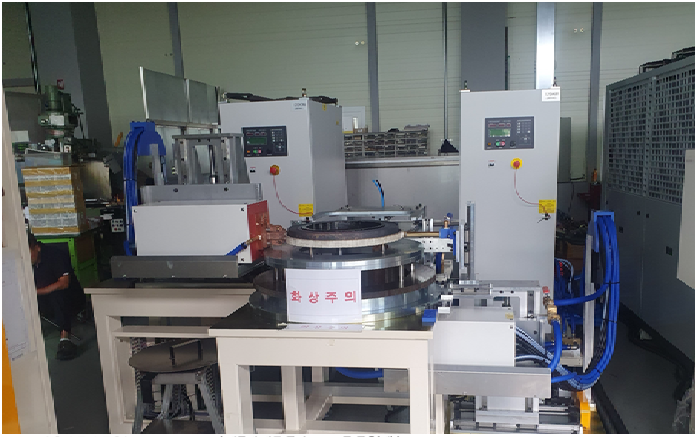

The induction heating system is composed of four main components.

induction heating device
cooling device
switchboard
work coil

Main specifications

induction heating system

Output

output voltage

120 kW
frequency range

35~400 kHz (May change depending on the specifications of the condenser)
oscillation voltage

700V below (May change depending on the specifications of the condenser)
cooling quantity

0.064 L/sec more

structure

output cable

air-cooled Co-axial Cable
dimensions (WxHxD)

25 x 27 x 53 cm
weight

25 kg (Excluding condenser)

Download

You can download the product manuals, reports, product specifications, outside view, catalog and circuit diagram.
