DIS-100Accessories System

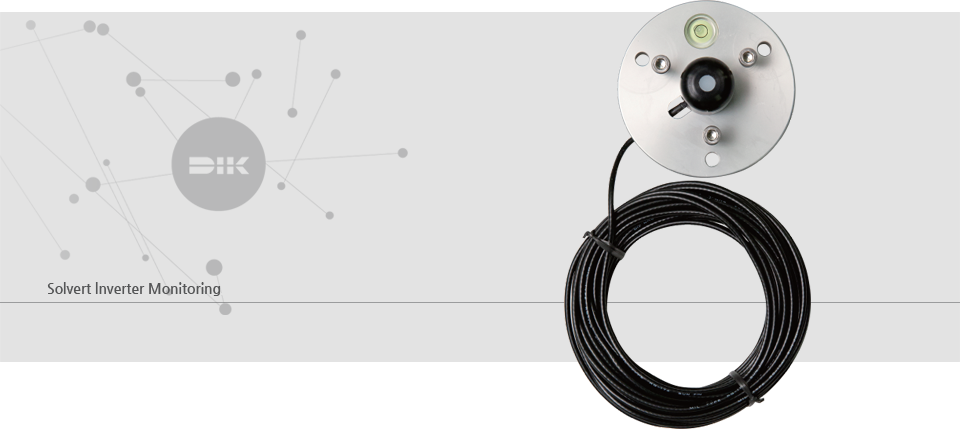

Accessories series|Horizontality/slope solar radiation sensor

DIS-100
Spec

  • Usage

    Solar radiation quantity sensor measuring horizontality solar radiation and slope solar radiation

  • IPower Supply

    RS-485 injector

  • Input Vot

    100/240 VAC(50/60Hz)

  • Ambient Temp

    -20’c ~ +80’c

  • Commnuication range

    1200 m

  • Weight

    1 kg

  • Installation

    Mounting plate

Technologies
Solar radiation quantity sensor
  • Horizontality/slope solar radiation sensorIt detects and measures horizontality solar radiation and slope solar radiation, solar radiation quantity sensor
  • It displays measured values on the monitoring screen in conjunction with a converter and sensor box.
System circuit diagram
System circuit diagram/스트링모니터
Specifications

Solvert Control Moitoring Air temperature sensor

Specifications

orange_borderbottom
Daily environment아이콘

  • IPower Supply

    RS-485 injector

  • Input Volt

    100/240 Vac(50/60Hz)

  • Ambient Temp

    -20`c ~ +80`c

  • Commnunication

    1200m

  • weight

    1 kg

  • Installation

    Mounting plate

Download

You can download the product manuals, reports, product specifications, outside view, catalog and circuit diagram.

매뉴얼 제품스펙 외형도 회로도
