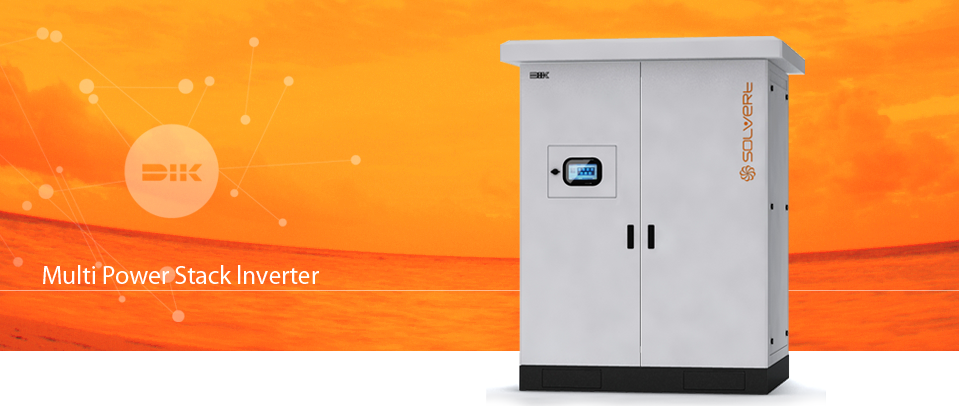

DPTH-500TE3Solvert Inverter System.
MPS series|without-TR / MV
Spec
-
Usage
Large-scale multi system-linked solar energy inverter (outdoor type)
-
Rated output
520.0 kW
-
PV voltage range (MPPT)
430 ~ 880 VDC
-
Grid-on voltage range
380 VAC ±10%
-
Total harmonic distortion(THD)
within 5% in total / within 3% respectively
- Euro efficiency
97% or higher
-
Outline dimensions
1508x2150x1500 (mm)
-
Weight
1500 kg
-
Usage
Large-scale multi system-linked solar energy inverter (outdoor type)
-
Rated output
520.0 kW
-
PV voltage range (MPPT)
430 ~ 880 VDC
-
Grid-on voltage range
380 VAC ±10%
-
Total harmonic distortion(THD)
within 5% in total / within 3% respectively
- Euro efficiency
97% or higher
-
Outline dimensions
1508x2150x1500 (mm)
-
Weight
1500 kg
Technologies
MPS(Multi Stack Power) inverter for large-scale multi string solar power system
- We developed the intelligent technology that can maximize the efficiency and lifetime of a power plant facility in accordance with the solar radiation of solar energy generation.
- We made use of MPS (multi power stack) technology for the purpose of maximizing the conversion efficiency with the team control feature and minimizing power loss in case of inverter failure depending on the power generation quantity.
- We substantially enhanced the reliability, lifetime and durability through the circulation operation and air cooler control of an inverter.
- We leveraged the plug-in type power stack structure to make it easier to disassemble and install an inverter. Also, we minimized the power generation stoppage rate in case of inverter failure.
- We ensured that Solvert Grand Series' three-phase Grid-On inverter lived up to the high standards of solar energy power plants resulting from the implementation of Renewable Energy Portfolio Standards (RPS).
MPS(Multi Stack Power) inverter for large-scale multi string solar power system
- We developed the intelligent technology that can maximize the efficiency and lifetime of a power plant facility in accordance with the solar radiation of solar energy generation.
- We made use of MPS (multi power stack) technology for the purpose of maximizing the conversion efficiency with the team control feature and minimizing power loss in case of inverter failure depending on the power generation quantity.
- We substantially enhanced the reliability, lifetime and durability through the circulation operation and air cooler control of an inverter.
- We leveraged the plug-in type power stack structure to make it easier to disassemble and install an inverter. Also, we minimized the power generation stoppage rate in case of inverter failure.
- We ensured that Solvert Grand Series' three-phase Grid-On inverter lived up to the high standards of solar energy power plants resulting from the implementation of Renewable Energy Portfolio Standards (RPS).

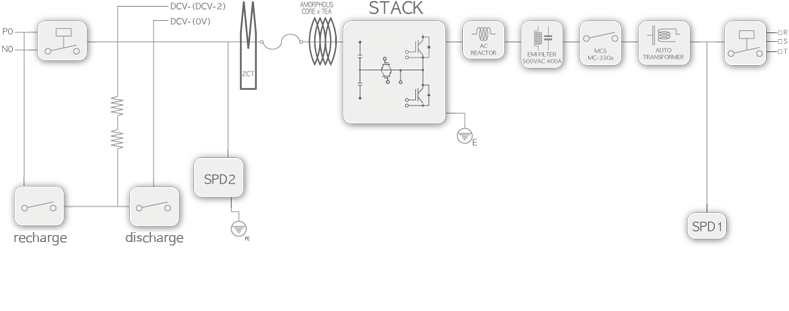

System circuit diagram
Specifications
Medium series
without-TR / MV
Input(DC)
-
Maximum recommended PV power
572.0kWp
-
Rated power
546.0kW
-
Maximum Input voltage
880V
-
Rated voltage
450 V
-
PV voltage range (MPPT).
430~880 V
-
Maximum input current
1,144A
-
Rated current
1,092A
-
Control method
Level 3
-
Maximum number of strings
1
Output (AC)
-
Maximum output electricity
572.0kWP
-
Rated current
520.0 kW
-
Rated voltage
380 V
-
Rated voltage range
380V ±10%
-
Rated current
790A
-
Rated frequency
50/60 Hz
-
Grid frequency range
50/60Hz ±0.5Hz
-
Constant
3-phase 4-wire (transformer-type)
-
Power factor
0.95 or higher
-
Total Harmonic Distortion(THD).
within 5% in total / within 3% respectively
- Euro Efficiency
97% or higher
Structure
-
Cooling method
Forced air-cooled type (AC Fan)
-
AC connector
MCC8
-
DC connector
SUSOL
-
Display
7' Touch screen
-
Communication
RS485
-
Outline dimensions (WxHxD).
1500 x 2000 x 1200 mm
-
Weight
1500 kg
Protection feature
-
Inverter
Input and voltage / short circuit / overload / overheating / DC output leakage prevention
-
Grid
Anti-islanding / grid low voltage / grid excess voltage / grid low frequency / grid excess frequency
-
Anti-islanding
0.5 sec
-
Certified rating
PV 502
Daily environment
-
Ambient temperature
-10'c ~ 40'c
-
Conservation temperature
-20'c ~ 65'c
-
Ambient humidity
humidity 90% RH or less (where there is no dew formation phenomenon)
-
Ambient environment
A place where there is no corrosive gas, flammable gas, oil mist or dust
Medium series
without-TR / MV
Input(DC)
-
Maximum recommended PV power
572.0kWp
-
Rated power
546.0kW
-
Maximum Input voltage
880V
-
Rated voltage
450 V
-
PV voltage range (MPPT).
430~880 V
-
Maximum input current
1,144A
-
Rated current
1,092A
-
Control method
Level 3
-
Maximum number of strings
1
Output (AC)
-
Maximum output electricity
572.0kWP
-
Rated current
520.0 kW
-
Rated voltage
380 V
-
Rated voltage range
380V ±10%
-
Rated current
790A
-
Rated frequency
50/60 Hz
-
Grid frequency range
50/60Hz ±0.5Hz
-
Constant
3-phase 4-wire (transformer-type)
-
Power factor
0.95 or higher
-
Total Harmonic Distortion(THD).
within 5% in total / within 3% respectively
- Euro Efficiency
97% or higher
Structure
-
Cooling method
Forced air-cooled type (AC Fan)
-
AC connector
MCC8
-
DC connector
SUSOL
-
Display
7' Touch screen
-
Communication
RS485
-
Outline dimensions (WxHxD).
1500 x 2000 x 1200 mm
-
Weight
1500 kg
Protection feature
-
Inverter
Input and voltage / short circuit / overload / overheating / DC output leakage prevention
-
Grid
Anti-islanding / grid low voltage / grid excess voltage / grid low frequency / grid excess frequency
-
Anti-islanding
0.5 sec
-
Certified rating
PV 502
Daily environment
-
Ambient temperature
-10'c ~ 40'c
-
Conservation temperature
-20'c ~ 65'c
-
Ambient humidity
humidity 90% RH or less (where there is no dew formation phenomenon)
-
Ambient environment
A place where there is no corrosive gas, flammable gas, oil mist or dust
Download
You can download the product manuals, reports, product specifications, outside view, catalog and circuit diagram.
You can download the product manuals, reports, product specifications, outside view, catalog and circuit diagram.
